ANSER ®   U2 INKJET CODERS

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Anser® U2 Smart™


The Anser® U2-Smart offers the most cost-effective solution with exclusive ink portfolio for Porous & Semi-porous printing applications.


Our new inkjet printers are code chipped for Foscott Coding 353-1

And our cartridges are code chipped to EDC 353-1



Compact Size with 3.5-inch

 LCD Screen Feature a larger screen to provide a better user experience, while maintaining its compact body size for hassle-free installation and easy integration.

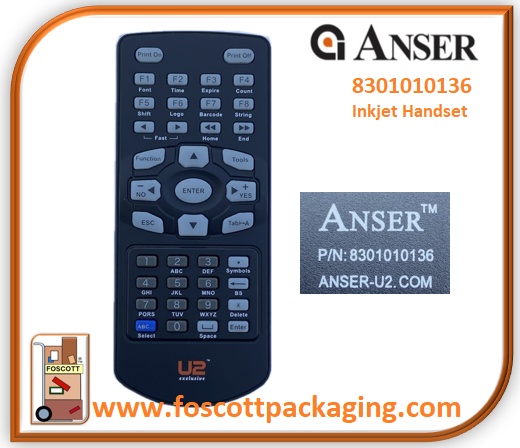

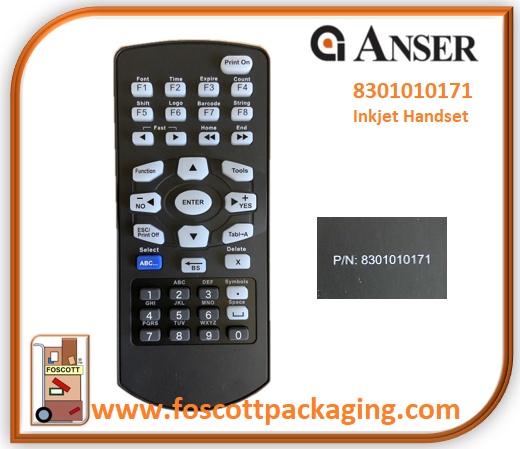

Pocket-sized Remote Keypad
Handy and compact remote keypad with comprehensible design for easy operation

Dust Cover Design
Help to protect cartridge from getting damaged in dusty environment

Anti-Shock Mechanism Design
Anti-Shock Mechanism design to eliminate the unexpected damage to your printer with ANSER’s unique protective design.
High Readable Rate Barcodes

Capable of printing crisp 1D & 2D barcodes including EAN 128, Code 128, Code 39, Data Matrix, QR Code, and etc
Zero-Maintenance
The ink cartridge design eliminates unnecessary printhead services; it is truly zero-maintenance and has drastically decreased your total cost of owner ship.
Friendly UI & Intelligent Dashboard
Simple yet elegant user interface for easy operation. The intelligent dashboard design monitors the printer status and provides real-time system notification.   USB 2.0 Compatible Multiple functions including software update, data backup and stand-alone USB keyboard operation   Automatic Ink Identification Automatically identifies and selects the proper firing parameter to ensure the best print quality
U2-Smart Specifications:
Display

3.5” Colour LCD with LED backlight
User Interface

Simple and easy-to-use operating system
Input Device
Pocket-sized IR remote keypad
Available Languages

 English, Japanese, French, German, Spanish, Portuguese, Russian, Korean, Italian, Turkish, Hungarian, Slovak, Czech, Swedish, Romanian, Serbian, Bulgarian, Chinese (Traditional & Simplified)
LED Indicators
Alarm, Ink low, Print, Run, Remote on/off
Print Engine

Hewlett-Packard Thermal Ink Jet Technology
Print Resolution & Print Speed
 600 x 300 dpi (76.2 m/min) Print quality is dependent on resolution and speed
Print Distance

 Recommended 6mm
Print Height

Up to 4 lines and 12.7mm (0.5”). Selectable font size from 2.7mm, 3.6mm, 5.5mm, 8mm, 10mm, 12.7mm
Print Capability
Alphanumeric, logos, date/time, shift code, counter, lot box code
Barcodes
Code-128, ITF-14(SCC-14), NVE(SSCC-18), EAN-128, PDF417, Data Matrix, QR Code, DUN-14, GS1 Data Bar, UPCA, UPCE, EAN-13, EAN-8, Code 25 Interleaved, Coda bar, Code-39   Electrical Requirements
AC 100V~240V, 50/60Hz
Weight
0.49kg - Cartridge and brackets not included in weight.

Dimensions
114 (L) x 76 (W) x 60 (H) mm
Mounting Orientation

Horizontal or downside
Message Storage Capacity

Store up to 999 messages
Operating Temperature
5°C – 40°C (41°F – 104°F)
Data Interface

RS485 & USB

Optional Accessories:
Encoder
Provide high print quality on unstable conveyor
Photocell
Provide more reliable and precise sensing parameter
Alarm Kit
Alert users in the event of an incident






Example of printing onto HDPE bottles with SPL ink.


We can test which ink will best suit your application, samples can be sent to us for coding and returned for inspection.














£1650.00 + Vat

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Anser® U2 Pro-s™



The compact Anser U2 Pro-S printer is Designed for Industrial High-speed printing application 100% Solvent compatible. You can save up to 30% of ink consumption with smaller ink drop size performing High Optical density prints. Plug-n-Play, ready to use.

 U2 Pro-S can give you a very short drying time about 1-2 seconds until it reaches the scratch resistance feature.


Small, yet powerful, the Anser U2 Pro-S has a unique solvent compatible cartridge designed specifically for primary package coding applications. This mighty printer packs the punch of a CIJ (Continuous Inkjet) printer at a fraction of the size and cost. Many customers are finding applications that utilize the Pro-S instead of a CIJ!


Ink Cartridges


Cartridge: EDC: 44-5  prints on non-porous substrates: Stainless steel / PET Bottle / Rubber / Glass / Plastic / PP / PVC / Nylon / HDPE / CPP / OPP / PC / Film / Aluminium



Code chipped for UK - EDC: 44-5


Key Features:

  • 1/3 price and 1/30 size compared with CIJ printers
  • Plug-n-Play design with zero maintenance
  • Designed for industrial printing applications
  • Anser U2 Pro is 100% solvent compatible
  • High-speed printing
  • Internal SD card
  • USB connectivity
  • WiFi connection (coming soon)
  • Improved user interface for easier navigation
  • 13 font heights (1mm - 12.7mm) and tower print up to 1.8mm
  • Easy ink cartridge replacement design with no maintenance
  • Save up to 30% of ink with smaller ink drop size
  • Environmental and pollution-free (no more MEK solvent)
  • wider range of inks including UV curable


Anser U2 Pro-S Printer Specifications



Model

Anser U2 Pro-S

Display

3.5” full colour LCD with LED backlit screen

Dimensions

119mm(L) x 78.8mm(W) x 76mm(H)

Weight

0.55kg excluding brackets and ink cartridge

LED indicators

5 indicators: alarm; low ink; print; run; remote on/off

Operational menu

Digital Menu Selection (DMS) for easy operation

Input device

Pocket-size IR remote keypad, compact 7” Newcode Tablet  with multi touch function (optional)

Cartridges

All Solvent Compatible NPX1 and NPX2

Printable images

Alphanumeric; logo; date/time; expiry date; shift code; counter; and barcode

Printable lines & heights

Up to 4 lines and limited to 12.7mm (0.5″).
Selectable font size from 2.7mm, 3.6mm, 5.5mm, 8mm, 10mm, 12.7mm

Message storage cap

Anser U2 Pro-S can store up to 999 messages

Power supply

AC 100V-240V, 50/60Hz, 1.6A.  Maximum power consumption: 60 Watts

Operating temperature range

5-50ºC (41-122ºf)

Warranty

12 months (excluding consumer parts)

Standard mounting brackets

Horizontal or downside

Distance to print surface

No greater than 6mm (0.25”)


£1800.00 + Vat


-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


SP4

HP Anser® Cartridge Ink

Black

Blue

Red

Green

Volume : 42ml


Porous

SP4 is a dye-based ink that prints 4x darker. This ink provides remarkable de-cap time, while maintaining excellent print quality and dark printing resolution on various porous and some semi-porous substrates.



Our SP4 Cartridges are code chipped.


Sample EDC code will be


EDC: 353-1

EDC: 44-5


Should the incorrect cartridge be used the red warning light will flash and the screen will show -


Cartridge Error

(0x00E2)


And the printer will not print.



May be purchased as single cartridges.

Price per single cartridge

£82.00 + Vat


SP4-1

Anser® Cartridge Ink

SP4-1 New Inkfinity cartridge to replace the SP4

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

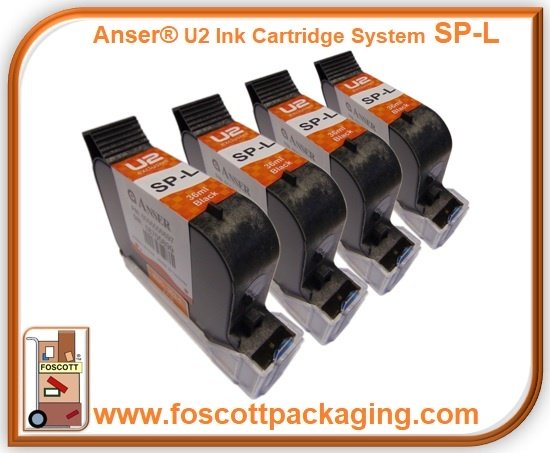

SP-L

Inkfinity Anser® Ink Cartridge

Black

Blue

Red

Green


Volume: 36ml

Semi-porous


SP-L ink cartridge for the Anser® U2 Inkjet Printers feature the darkest ink available that’s still flexible enough to be applied to many surfaces. This ink cartridge will work great on all semi-porous materials, including cardboard boxes and labels.

Recommended for use on - Uncoated paper, Copper paper


Apply a test for - Wood, Plastic


Not recommended for - Metal, Glass


Ink Information

36ml

Black

For Semi-Porous Materials

600DPI

De-cap time 2 hours

Colour system - dye


Our SP-L Cartridges are code chipped.


Sample EDC code will be

EDC:353-1

EDC:44-5


May be purchased as singles.

Price per single cartridge

£89.00 + Vat

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


NP4

HP Anser® Cartridge Ink

Black Only



Volume: 42ml

Non-porous


NP4  Series ink solutions. This solvent-based ink can provide good permanence on a wide range of non-porous substrates. You can expect an impressive de-cap time, darker optical density, shorter drying time of less than 3 seconds, and improved adhesion to various non-porous substrates. Such as copper paper, PP (synthetic paper), golden cardboard, aluminium coated, PP, PVS, PC, OPP, PET, and APET.

Volume : 42ml




Our NP4 Cartridges are code chipped.


May be purchased as single cartridges.

Price per single cartridge

£89.00 + Vat

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

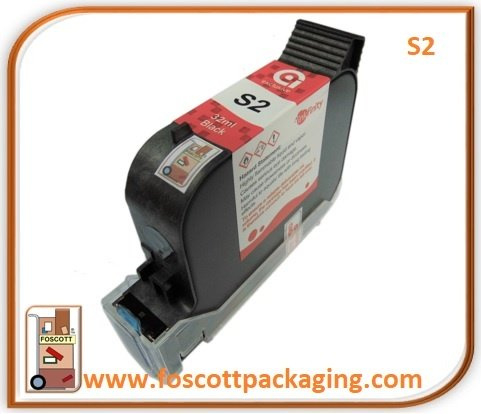

S2 Anser® Cartridge Ink

Black

Solvent based ink

For printing onto glass bottles


Our S2 Cartridges are code chipped.

Please advise us in the comment section when ordering the EDC code so we can supply the correctly chipped cartridge for your printer.


Sample EDC code will be

EDC: 44-5 or EDC:353-1


Supplied in pack of six cartridges.

May be purchased as single cartridges.




Price per single cartridge

£89.00 + Vat

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Anser® U2 SmartONE™

Inkjet Printer


The world's first ONE inch (25.4mm) TIJ printer.

Solid 1-inch cartridge,
specially designed for the industrial coding market

Seamless print quality for higher readable rate

Compact-sized for easy installation
and system integration

Thanks to "Plug and play", no technician is required for the installation of the systems and therefore saves additional time and money.


U2-SmartONE” Specifications


Display

3.5” Color LCD with LED backlight
User-interface
Simple and easy-to-use operating system
Input Device
Pocket-sized IR remote keypad
Available Languages
English, Japanese, French, German, Spanish, Portuguese, Russian,
Korean, Italian, Turkish, Hungarian, Slovak, Czech, Swedish, Romanian,
Serbian, Bulgarian, Chinese (Traditional & Simplified), Polish, Fassi, Arabic
LED Indicators
Alarm, Ink Low, Print, Run, Remote on/off
Print Engine
Thermal Ink Jet Technology
Print Resolution & Print Speed
300 dpi (60m/min) Print quality is resolution & speed dependent
Print Distance
Max 6mm
Print Height
Up to 25.4mm(1-inch). Selectable font size: 5.4mm, 7.2mm, 11mm, 16mm,
20mm, 25.4mm
Print Capability
Alphanumeric, logos, date/time, shift code, counter, lot box code
Barcodes
EAN8, EAN13, EAN14, EAN128, UPCA, UPCE, CODE39,
CODE128, TF14 (SCC-14), NVE18 (SSCC-18), C25INTER, CODABAR,
PDF417, DATAMATRIX, QRCODE
Power Adapter
Input AC 100V~240V, 50/60Hz
Output DC 12V/5A, 60W
Weight
0.49kg (1.08 lb.) - excluding cartridge and bracket
Dimensions
(L/W/H) 114x76x60 (mm)
Mounting Orientation
Horizontal or downside
Message Storage Capacity
Store up to 999 messages
Operating Temperature
5°C – 40°C (41°F – 104°F)
Data Interface
RS485 & USB Host


Optional Accessories
Encoder Provide high print quality on unstable conveyor
Photocell Provide more reliable and precise sensing parameter
Alarm Kit Alert users in the event of an incident


£1695.00 + Vat

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

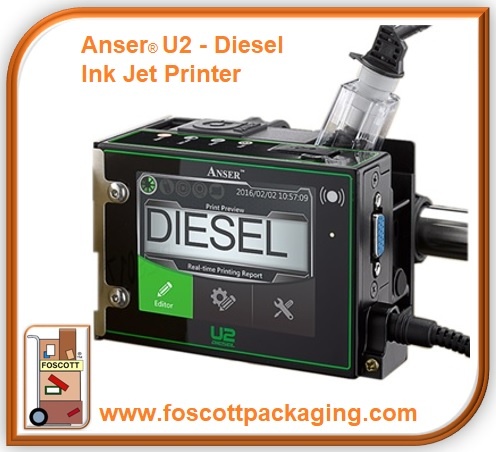

Anser® U2-Diesel™

Inkjet Printer


U2-Diesel Specifications:
Display
3.5” Colour LCD with LED backlight
User-interface
Simple and easy-to-use operating system
Input Device
Pocket-sized IR remote keypad
Available Languages
English, Japanese, French, German, Spanish, Portuguese, Russian,

Korean, Italian, Turkish, Hungarian, Slovak, Czech, Swedish, Romanian,

Serbian, Bulgarian, Chinese (Traditional & Simplified)

LED Indicators
Alarm, Ink low, print, run, remote on/off

Print Engine
Hewlett-Packard Thermal Ink Jet technology
Print Resolution & Print Speed
600 x 300 dpi (76.2 m/min)
Print quality is resolution & speed dependent.
Print Distance
Recommended 6mm Print Height - Up to 4 lines and 12.7mm (0.5”).
Selectable font size from 2.7mm, 3.6mm, 5.5mm, 8mm, 10mm, 12.7mm
Print Capability
Alphanumertic, logos, date/time, shift code, counter, lot box code
Barcodes EAN8, EAN13, EAN14, EAN128, UPCA, UPCE, CODE39,
CODE128, TF14(SCC14) NVE18(SSCC-18), C25INTER, CODABAR,
PDF417, DATAMATRIX, QR CODE

Electrical Requirements
AC 100V~240V, 50/60Hz
Weight
0.49kg (1.08 lb.) - excluding cartridge and bracket
Dimensions (L/W/H)
114 x 76 x 60 (mm)
Mounting Orientation
Horizontal or downside
Message Storage Capacity
Store up to 999 messages
Operating Temperature
5°C – 40°C (41°F – 104°F)
Data Interface
RS485 & USB port

Optional Accessories:
Encoder

Provide high print quality on unstable conveyor
Photocell
Provide more reliable and precise sensing parameter
Alarm Kit
Alert users in the event of an incident


£1695.00 + Vat

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

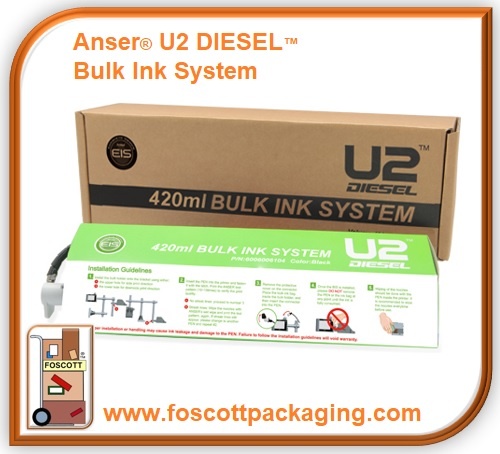

BIS

U2 Diesel-S BIS Ink


Bulk Ink System

Black

Volume: 420ml


Diesel 420 BIS is ANSER’s P Series ink solution.

You can expect 4 times darker image, up to an incredibly long 60 hours de-cap time and enhanced printing resolution allowing you to print clear and readable text/barcodes on porous substrates.


£160.00 + Vat


-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

U2 Mobile S

U2 MobileONE


-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Anser U2 Mobile Handheld Printer

ANSER U2 MOBILE


The Anser U2 thermal inkjet handheld printer is a coding solution for offline packaging printing. The unit is portable; compact and lightweight, weighing only 1kg, and is capable of printing at any angle directly on to non-porous packaging using fast drying non-smearing ink.



The anser u2 mobile handheld printer is capable of printing; up to 4 lines of text; barcodes; or logos, automatically count, print the date/time/shift and batch numbers. To change the cartridge, it operates a “Hot Swap” system to minimise downtime.



-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

INK CARTRIDGES

 Anser SP4 Cartridges: This ink provides remarkable de-cap time, while maintaining excelling print quality and dark printing resolution on various semi-porous substrates.

 Anser SP2B Cartridges: This specialised dye-based ink was designed to perform on varnished substrates.

 Anser SP2C Cartridges: This specialised dye-based ink was designed to perform well on difficult substrate such as hot PVC substrates.

 Anser NP4 Cartridges: This solvent-based ink is capable of providing good permanence on a wide range of non-porous substrates. When compared to our NP3 ink, you can expect an impressive de-cap time, darker optical density, shorter drying time of less than 3 seconds, and improved adhesion to various non-porous substrates. Such as copper paper, PP (synthetic paper), golden cardboard, aluminium coated, PP, PVS, PC, OPP, PET, and APET.





KEY FEATURES:

 4-in-1 compact design, integrated with screen, controller printhead & ink cartridge.

 Completely stand-alone, no PC required for operation.

 Remote control keypad for user-friendly operation

 SD card slot design for easy software upgrades and data backup

 Easy to follow instructions – could be operational in minutes.

 Easy ink cartridge replacement design with no maintenance

 Fast drying non-smearing ink available in black, blue, red, yellow, white.

 No solvent consumption

 Anti-Shock mechanism design

 Log report for security check



SOFTWARE:

 Message Pro software is supplied for free on the supplied SD card for easy creation, editing and backup of messages to PC.

 Software customisation available upon request

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

U2 Mobile S


Specifications



Display  -  3.5" Color LCD with LED backlight

LED Indicators   -  Alarm, Ink low, Print, Run, Remote on/off

Input Device   -  Pocket-sized IR remote keypad

Print Engine Technology   -  Thermal Inkjet

Available Languages  - English, Chinese (Traditional), Chinese (Simplified), Japanese, Russian, Korean,

German, Portuguese, Spanish, French, Italian, Turkish, Hungarian, Slovak, Czech,

Swedish, Romanian, Serbian Latin, Serbian Cyrillic, Bulgarian, Polish, Vietnam

Max. Printing Resolution  -  400(h) x 300(v) dpi ( Print quality is dependent on resolution and speed)

Max. Printing Speed  -  60.96 Meters/Mins at 300 dpi setting

Max. Print Distance  -  Recommended 6mm from nozzle to surface

Message Height  -  "Up to 12.7mm (0.5"")

Selectable font size: 1.0mm, 1.4mm, 1.8mm, 2.7mm, 3.6mm,

4.5mm, 5.0mm, 5.5mm, 6.4mm, 8mm, 10mm, 11mm, 12.7mm


Print Capabilities  -  Text, String, Logo, Shift, Counter, DateTime, Expiration Date, Barcode

Barcodes  -  Code-128, ITF-14(SCC-14), NVE(SSCC-18), EAN-128, PDF417, Data Matrix, QR Code,

DUN-14, GS1 Datamatrix, GS1 DataBar, GS1 DataBar EXP, GS1 QR CODE, UPCA,

UPCE, EAN-13, EAN-14, EAN-8, Codabar, Aztec Code, INTER25, CODEBAR, Code-39

Input/Output  -  RS-485, RS-232, USB, Wi-Fi

Message Storage Capacity  -  Store up to 999 messages

Operating Temperature  -  5°C - 40°C (41°F - 104°F)

Encoder  -  Embedded (400DPI)

Dimensions  -  219 mm (L) x136.9 mm, (W) x 143.5 mm (H)

Weight  - 1.13kgs (2.5 lbs) excluding cartridge.

Standard Accessories  -  Battery, battery charger with adapter, USB disk, remote control

Optional Accessories  -  Wi-Fi dongle, RS-485 to USB converter, Clock stabilizer

PC software  -  Message Pro II, Net Commander

Printer Control Protocol  -  ANSER U2 Net Protoco



Long Lasting Battery

Rated Capacity  -  1,840 mAh

Standard Voltage  -  11.1V

Charging Voltage ( Max )  - 12.6V

Charging Hours ( Max )  -  2 hours

Operating Temperature  -  Charge: 0°C - 45°C (32°F - 113°F)

Discharge: -20°C - 60°C (-4°F- 140°F)

Dimensions  -  100.3 (L) x 56.3, (W) x 21 (H) mm

Weight  -  150g (0.33 lbs)

Cycle Life  -  More than 300 cycles

Continuous Printing Hours  -  4 hours

Power Adapter of Battery Charger  -  12.6V 2A

Stand-by Time  -  4.5 hours

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

U2 MobileONE


Specifications



Display  -  3.5" Color LCD with LED backlight

LED Indicators   -  Alarm, Ink low, Print, Run, Remote on/off

Input Device   -  Pocket-sized IR remote keypad

Print Engine Technology   -  Thermal Inkjet

Available Languages  - English, Chinese (Traditional), Chinese (Simplified), Japanese, Russian, Korean,

German, Portuguese, Spanish, French, Italian, Turkish, Hungarian, Slovak, Czech,

Swedish, Romanian, Serbian Latin, Serbian Cyrillic, Bulgarian, Polish, Vietnam

Max. Printing Resolution  -  400(h) x 300(v) dpi ( Print quality is dependent on resolution and speed)

Max. Printing Speed  -  60.96 Meters/Mins at 300 dpi setting

Max. Print Distance  -  Recommended 6mm from nozzle to surface

Message Height  -  "Up to 25.4mm (1 inch) Selectable font size: 2.0mm, 2.8mm, 3.6mm, 5.4mm, 7.2mm,

9mm, 10mm, 11mm, 12.8mm, 16mm, 20mm, 22mm, 25.4mm


Print Capabilities  -  Text, String, Logo, Shift, Counter, DateTime, Expiration Date, Barcode

Barcodes  -  Code-128, ITF-14(SCC-14), NVE(SSCC-18), EAN-128, PDF417, Data Matrix, QR Code,

DUN-14, GS1 Datamatrix, GS1 DataBar, GS1 DataBar EXP, GS1 QR CODE, UPCA,

UPCE, EAN-13, EAN-14, EAN-8, Codabar, Aztec Code, INTER25, CODEBAR, Code-39

Input/Output  -  RS-485, RS-232, USB, Wi-Fi

Message Storage Capacity  -  Store up to 999 messages

Operating Temperature  -  5°C - 40°C (41°F - 104°F)

Encoder  -  Embedded (400DPI)

Dimensions  -  219 mm (L) x136.9 mm, (W) x 143.5 mm (H)

Weight  - 1.13kgs (2.5 lbs) excluding cartridge.

Standard Accessories  -  Battery, battery charger with adapter, USB disk, remote control

Optional Accessories  -  Wi-Fi dongle, RS-485 to USB converter, Clock stabilizer

PC software  -  Message Pro II, Net Commander

Printer Control Protocol  -  ANSER U2 Net Protoco



Long Lasting Battery

Rated Capacity  -  1,840 mAh

Standard Voltage  -  11.1V

Charging Voltage ( Max )  - 12.6V

Charging Hours ( Max )  -  2 hours

Operating Temperature  -  Charge: 0°C - 45°C (32°F - 113°F)

Discharge: -20°C - 60°C (-4°F- 140°F)

Dimensions  -  100.3 (L) x 56.3, (W) x 21 (H) mm

Weight  -  150g (0.33 lbs)

Cycle Life  -  More than 300 cycles

Continuous Printing Hours  -  4 hours

Power Adapter of Battery Charger  -  12.6V 2A

Stand-by Time  -  6 hours


-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
