Heat Shrink Chambers


seal and shrink in one operation, and feature very low

energy consumption and advanced electronic controls.

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------




All Shrink Chamber and L-Sealers include a 12 month warranty.

Optimax® Heat Shrink Chambers, Packer® Heat Shrink Chambers,



-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

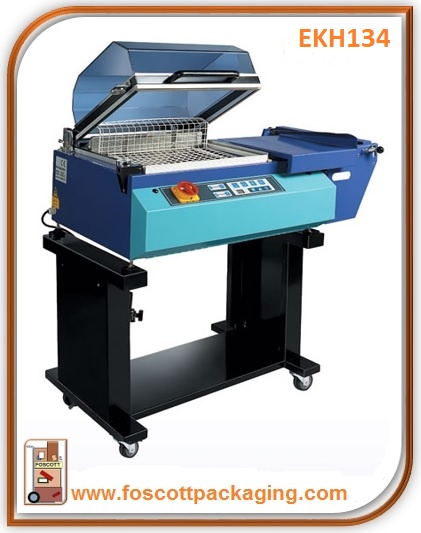

SC346

Optimax®

Heat Shrink Chamber


Sealing dimension: 320mm (D) x 460mm (L)

Heat shrink chambers seal and shrink in one operation, and feature very low energy consumption and advanced electronic controls.
All Shrink Chamber and L-Sealers include a 12 month warranty.

Features -
Power supply  220/230/240V - 50/60HZ  single phase
Max power consumption  3.2Kw
Effective power consumption  1.3 - 1.9Kw
Sealing dimension  320mm (D) x 460mm (L)
Max height of package  120mm
Machine dimensions  1120mm (L) x 660mm (W) x 550mm (H)
Max. dimension of film  400mm x 250mm Dia




£1995.00 + Vat

Watch our Optimax® SC346 Heat Shrink Chamber Video

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

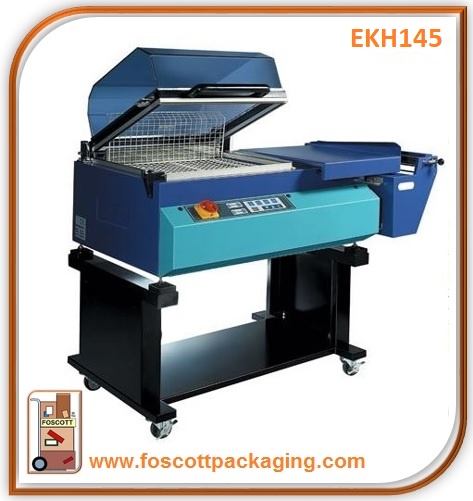

SC455

Optimax®

Heat Shrink Chamber


Sealing dimension: 420mm (D) x 550mm (L)

Heat Shrink Chambers seal and shrink in one operation, and feature very low energy consumption and advanced electronic controls.
All Shrink Chamber and L-Sealers include a 12 months parts warranty

Features:
Power supply  220/230/240V - 50/60HZ  Single phase - 16amp
Max power consumption  3.77Kw
Effective power consumption  1.6 - 2.3Kw
Max height of package  250mm
Machine dimensions  1320mm (L) x 820mm (W) x 645mm (H)
Max. Dimension of film: 600mm x 250mm Dia


£2495.00 + Vat

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

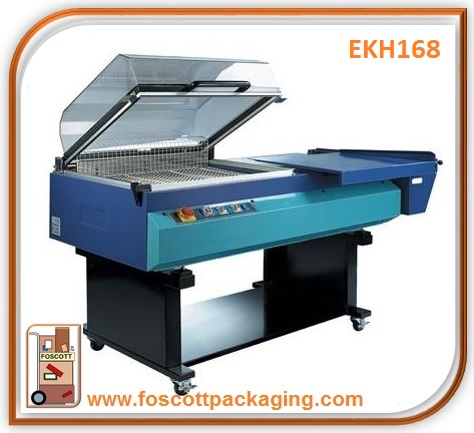

SC680

Optimax®

Heat Shrink Chamber


Sealing dimension: 620mm (D) x 800mm (L)
Heat Shrink Chambers seal and shrink in one operation, and feature very low energy consumption and advanced electronic controls.
All Shrink Chamber and L-Sealers include a 12 months parts or return to base warranty.
Features:
Power supply: 380/400/415V - 50/60HZ  - 3 phase
Max power consumption: 5.3Kw
Effective power consumption: 2.3-3.4Kw
Max height of package: 250mm
Machine dimensions: 1575mm (L) x 1020mm (W) x 645mm (H)
Max. Dimension of film: 800mm x 250mm Dia

£3995.00 + Vat

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


ST455

Optimax®

Heat Shrink Chamber

L - Sealer Combined Sealer / Shrink Tunnel


Sealing dimension: 420mm (D) x 550mm (L)
Features:
Power supply  400V - 50HZ -  3-phase
Max power consumption  9Kw
Tunnel inlet dimension  400mm (W) x 200mm (H)


Working plate height  900mm
Max packing height  150mm

Machine dimensions  2570mm (L) x 870mm (W) x 1600mm (H)
Max. Dimension of film  600mm x 300mm DIA
Machine weight  400kg


£5650.00 + Vat

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


AC550

Packer®

Heat Shrink Chamber


Sealing Area: 420mm (D) x 550mm (L)

Maximum pack height 250mm

Maximum 500mm wide centerfold film
Illuminated display showing settings
Seals and shrinks up to 9 packs/min simultaneously, with controllable solenoid to ensure perfect film finish every time

Mobile with lockable castors and easy to install, ready for immediate use with operator friendly controls

Dimensions  L1210 x W730 x H1400mm


Weight  100kgs



£2950.00 + Vat

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


AC770

Packer®

Heat Shrink Chamber


Sealing Area:  470mm (D)  x 700mm (L)

Maximum pack height 250mm

Maximum 550mm wide centerfold film
Illuminated display showing settings
Seals and shrinks up to 8 packs/min simultaneously, with controllable solenoid to ensure perfect film finish every time
Mobile with lockable castors and easy to install, ready for immediate use with operator friendly controls

Dimensions  L1510 x W770 x H1400mm.
Weight  120kgs
Power  Single phase 16amp


£3240.00 + Vat

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
