Continuous Band Sealers.

Foscott Packaging Rotary Band Sealers.


FR900-HSSA

FRD900-HSS

FRD900-HSSE

FRD900-VHSE

FRD-1000 / CBS730iDS1

FPDBF1000ANSS

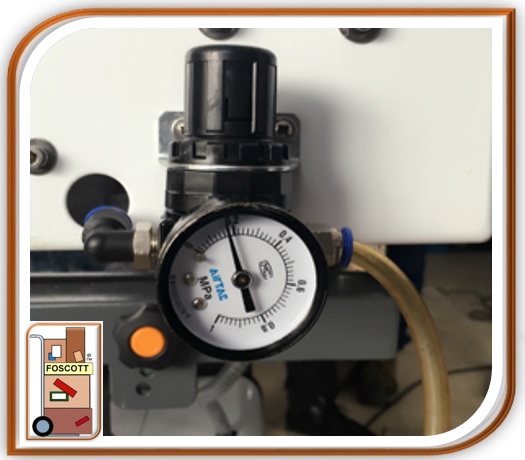

FPS1080VGP

FRM-1120LD / CBS1010CiS



All our band sealers are made with stainless steel.

Rotary Band Sealer / Continuous Band Sealers / Gas Filling / Vacuum

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

FR900-HSSA

Rotary Band Heat Sealer


Horizontal Heat - Sealing Model  - Analogue Control


Continuous high-speed bag sealing system.


Bag Sealer, Industrial Bag Sealer, Continuous Band Sealer, Foil / laminate pouch sealer.



Rust-inhibiting Stainless-Steel construction.


Extremely easy to use


Non-stick woven PTFE-type guide belts.


Makes strong,  professional-looking airtight seals like those made by costly high-speed automatic systems.


Seals thermoplastic materials including Polyethylene (PE),  Polypropylene (PP), BoPET (ie. Mylar), and heat-sealable laminations and cellulose (ie. Cellophane).


Includes motorized belt conveyor with synchronized speed adjustment.


Adjustable conveyor for

up – down / in - out


Conveyor Width 6 inches.

Equipped with electronic adjustable speed control.


Adjustable 2-Way pulley system for optimal bag stability.


Equipped with bag entry guide for easy bag feeding and straight seals.

Extended forced-air cooling system with extra-wide cooling bars and 6 heat transfer orifices.

Knurled pressure rollers with variable pressure adjustment.

Sealing method: constant heat.

Single pair of brass sealing bars.

Control panel includes E-Stop (industrial quick-stop switch).



Analogue Heat Control


12mm Wide seal dimple heat seal effect.

Watch our video of the FR900-HSSA model.



Horizontal operation.


Specification:

Voltage = 220v

Power = 500w

Sealing speed = 0-12m/min

Sealing width = 6-12mm

Temperature range = 0-400°C

Max. conveyor loading = 3kgs

Machine weight 19kg

Machine size = 850mm x 400mm x 310mm



FR900-HSSA  £449.00 + Vat


Special Offer Price £359.00 + Vat

Offer ends 30th November 2021

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

FRD900-HSS

Rotary Band Heat Sealer


Horizontal Heat - Sealing Model


Continuous high-speed bag sealing system.


Bag Sealer, Industrial Bag Sealer, Continuous Band Sealer, Foil / laminate pouch sealer.



Rust-inhibiting Stainless-Steel construction.


Extremely easy to use


Non-stick woven PTFE-type guide belts.


Makes strong,  professional-looking airtight seals like those made by costly high-speed automatic systems.


Seals thermoplastic materials including Polyethylene (PE),  Polypropylene (PP), BoPET (ie. Mylar), and heat-sealable laminations and cellulose (ie. Cellophane).


Includes motorized belt conveyor with synchronized speed adjustment.


Adjustable conveyor for

up – down / in - out


Conveyor Width 6 inches.

Equipped with electronic adjustable speed control.


Adjustable 2-Way pulley system for optimal bag stability.


Equipped with bag entry guide for easy bag feeding and straight seals.

Extended forced-air cooling system with extra-wide cooling bars and 6 heat transfer orifices.

Knurled pressure rollers with variable pressure adjustment.

Sealing method: constant heat.

Single pair of brass sealing bars.

Control panel includes E-Stop (industrial quick-stop switch).



Digital Control


12mm Wide seal dimple heat seal effect.


Horizontal operation.


Equipped with PID digital temperature controller, for bag materials that require very precise sealing parameters.

PID Digital Temperature Controller: 0 - 400°C  with dual alphanumeric displays

(target & current temperature)



Specification:

Voltage = 220v

Power = 500w

Sealing speed = 0-12m/min

Sealing width = 6-12mm

Temperature range = 0-400°C

Max. conveyor loading = 3kgs

Machine weight 19kg

Machine size = 850mm x 400mm x 310mm



FRD900-HSS  £499.00 + Vat


Special Offer Price £399.00 + Vat

Offer ends 30th November 2021

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

FRD900-VHSE

Continuous / Rotary Band Heat Sealer


Vertical and Horizontal Heat - Sealing Model


Can be used in vertical and horizontal modes.


Continuous high-speed bag sealing system.


Bag Sealer, Industrial Bag Sealer, Continuous Band Sealer, Foil / laminate pouch sealer.



Rust-inhibiting Stainless-Steel construction.


Extremely easy to use


Non-stick woven PTFE-type guide belts.


Makes strong,  professional-looking airtight seals like those made by costly high-speed automatic systems.



Seals thermoplastic materials including Polyethylene (PE),  Polypropylene (PP), BoPET (ie. Mylar), and heat-sealable laminations and cellulose (ie. Cellophane).


Includes motorized belt conveyor with synchronized speed adjustment.


Adjustable conveyor and sealing head for "up – down" operation.


Conveyor Width 6 inches.


Vertical operation.


Equipped with PID digital temperature controller, for bag materials that require very precise sealing parameters.

PID Digital Temperature Controller: 0 - 400°C  with dual alphanumeric displays

(target & current temperature)



Specification:

Voltage = 220v

Power = 500w

Sealing speed = 0-12m/min

Sealing width = 6-12mm

Temperature range = 0-400°C

Max. conveyor loading = 3kgs

Max. sealing / bag height = 330mm

Your bag / pouch will reduse in height when filled, so take your max height when filled.

Machine weight 20kg

Machine size = 850mm x 400mm x 310mm



FRD900-VHSE  £650.00 + Vat


Special Offer Price £519.00 + Vat

Offer ends 30th November 2021

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

FRD900-HSSE

Rotary Band Heat Sealer


Horizontal Heat - Sealing and Emboss Coding Model


Continuous high-speed bag sealing system with steel wheel coding embossing unit .


Bag Sealer, Industrial Bag Sealer, Continuous Band Sealer, Foil / laminate pouch sealer.


Rust-inhibiting Stainless-Steel construction.


Extremely easy to use


Non-stick woven PTFE-type guide belts.


Makes strong,  professional-looking airtight seals like those made by costly high-speed automatic systems.


Seals thermoplastic materials including Polyethylene (PE),  Polypropylene (PP), BoPET (ie. Mylar), and heat-sealable laminations and cellulose (ie. Cellophane).


Includes motorized belt conveyor with synchronized speed adjustment.


Adjustable conveyor for

up – down / in - out


Conveyor Width 6 inches.

Equipped with electronic adjustable speed control.

Adjustable 2-Way pulley system for optimal bag stability and embossing clarity.


Equipped with bag entry guide for easy bag feeding and straight seals.

Extended forced-air cooling system with extra-wide cooling bars and 6 heat transfer orifices.

Knurled pressure rollers with variable pressure adjustment.

Sealing method: constant heat.

Single pair of brass sealing bars



Embossed coding / printing sample into the seal


Maximum 15 charactors per print section.


Continuous printing wheel - print repeats every 5mm


Total length of print = 48mm



Fitted with embossing print / coding wheel


Supplied with a standard number / letter set.



















12mm Wide seal


Equipped with PID digital temperature controller, for bag materials that require very precise sealing parameters.

PID Digital Temperature Controller: 0 - 400°C  with dual alphanumeric displays

(target & current temperature)

Control panel includes E-Stop (industrial quick-stop switch).



Horizontal operation.



Specification:

Voltage = 220v

Power = 500w

Sealing speed = 0-12m/min

Sealing width = 6-12mm

Temperature range = 0-400°C

Max. conveyor loading = 3kgs

Machine weight 19kg

Machine size = 850mm x 400mm x 310mm

Printing = Steel wheel embossing unit - Brass embossing charactor set.



FRD900-HSSE  £599.00 + Vat


Special Offer Price £479.00 + Vat

Offer ends 30th November 2021

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

CBS730iDS1

FRD1000

Rotary band sealer hot ink coder

Rotary Band Sealer

Continuous Band Sealer


Multifunctional Ink Printing Sealing Machine


All-in-one continuous high-speed bag sealing system.


Bag Sealer, Industrial Bag Sealer, Continuous Band Sealer.


Digital Control


For maximum bag height sizes 13" (330mm) in vertical sealing mode

Your bag / pouch will reduse in height when filled, so take your max height when filled.


12mm Wide seal


Vertical and horizontal operation.

Fitted with a hot ink coder.

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Sample print from CBS730iDS1 and FRD1000


Sample showing dimpled effect on a polythene bag, can be adjusted for flat or dimpled finish.


Print up to three lines of code and can be adjusted to print code along the top of the pack.


Max characters per line: 20


Type Size: Letters - 3mm high x 2mm wide


12mm wide seal





Equipped with PID digital temperature controller, for bag materials that require very precise sealing parameters.


New larger LCD character display.


Top RED display for actual temperature at sealing heads.


Bottom GREEN display for adjustable set temperature at sealing heads.



PID Digital Temperature Controller: 0 - 400°C  with dual alphanumeric displays

(target & current temperature).





Stainless Steel construction.


Makes strong,  professional-looking airtight seals like those made by costly high-speed automatic systems.


Seals thermoplastic materials including Polyethylene (PE),  Polypropylene (PP), BoPET (ie. Mylar), and heat-sealable laminations and cellulose (ie. Cellophane).




Capable of speeds of up to 16 mtr/min, depending on product / bag seal characteristics.


Seals bags that are standing in vertical set up and bags that are laying on their side in horizontal set up.


Includes motorized belt conveyor with synchronized speed adjustment.


Adjustable conveyor for

up - down

in - out


Convertible from horizontal to vertical operation.


Dual-orientation system includes vertical and horizontal conversion kit


(Can be used both as a horizontal and as a vertical Band Sealer).


Bag height range: 4 – 13 inches (100mm – 330mm)


Your bag / pouch will reduse in height when filled, so take your max height when filled.











All spares are carried in stock.


Extremely easy to use

Non-stick woven PTFE-type guide belts.
Extra wide  12mm seal.
Bag height range: 4 – 13 inches (100 – 330mm H).
Conveyor Width 6 inches.
Equipped with electronic adjustable speed control.
Adjustable 2-Way pulley system for optimal bag stability and embossing clarity.
Equipped with bag entry guide for easy bag feeding and straight seals.
Extended forced-air cooling system with extra-wide cooling bars and 6 heat transfer orifices.
Knurled pressure rollers with variable pressure adjustment.
Sealing method: constant heat.
Single pair of brass sealing bars.
PID Digital Temperature Controller: 0 - 300°C (572°F) with dual alphanumeric displays (target & current temperature).
Control panel includes E-Stop (industrial quick-stop switch).
Rust-inhibiting Stainless Steel construction.

Dual-orientation system includes vertical and horizontal conversion kits (Can be used both as a horizontal and as a vertical Band Sealer).
Conveyor height from conveyor to center of sealing belt (at vertical configuration): 100 to 330mm (4 inches to 13 inches)

Other Specifications:
Fast Warm-Up Time.
Simple to Use - Minimal Operator Training.
Electrical: Supplied in  220v.
Machine power: 650 Watts10 amp protection power surge breaker.
Machine Size: 930mm (34.6 inches) L x 450mm (15 inches) W x 550mm (21.6 inches) H.
Boxed Size: 965mm (38 inches) L x 521mm (20.5 inches) W x 419mm (16.5 inches) H.
Machine Weight: 60 lbs (27Kg).
Boxed Weight:   76 lbs (35Kg)

Use hot ink rolls


CBS730iDS1 - FRD1000 - £850.00 + Vat



Watch our CBS730iDS1 / FRD-1000 Rotary Band Heat Sealer Video.

Watch our "How to" videos

How to change the print on a rotary band heat sealer - FRD1000


Extra print charactors may be purchased as sets or single number / letters / Charactors.

Type Size: Letters - 3mm high x 2mm wide


FRD1000-PCS

Standard Number / Letter Coding set


This set is supplied with a new machine, set includes -


2 x Silicone rubber, locking holders


4 x number 0                         2 x charactor  .                                    2 x letter B

2 x number 1                         2 x charactor  blank                          1 x letter E

2 x number 2                         2 x charactor  :                                    1 X letter X

2 x number 3                         2 x charactor  /                                   1 x letter P

2 x number 3                         2 x charactor  -                                   1 x letter M

2 x number 4                                                                                         1 x letter F

2 x number 5                                                                                         1 x letter D

2 x number 6                                                                                         1 x letter L

2 x number 7                                                                                         1 x letter O

2 x number 8                                                                                         1 x letter T

2 x number 9


FRD1000-NCS

Number Coding Set


Extra number option set for years 2021 and 2022 coding, includes -


2 x Silicone rubber, locking holders


4 x number 0                         2 x charactor  .

5 x number 1                         2 x charactor  /
6 x number 2                         2 x charactor  -

2 x number 3                         2 x charactor - blank

2 x number 3                         2 x charactor  :

2 x number 4

2 x number 5                         EXP

2 x number 6                         LOT

2 x number 7                         MFG

2 x number 8                         BB

2 x number 9

FRD1000-MCS

Month Coding Set


Extra option set includes -


2 x Silicone rubber, locking holders


1 x JAN                                        1 x charactor  .

1 x FEB                                         2 x charactor  blank

1 x MAR                                       1 x charactor  :

1 x APR                                        2 x charactor  /

1 x MAY                                       2 x charactor  -

1 x JUN

1 x JUL

1 x AUG

1 x SEP

1 x OCT

1 x NOV

1 x DEC


FRD1000-LCS

Letter Coding Set


Extra option set includes -


2 x Silicone rubber, locking holders


1 of each charactor - A to Z

How to change the PTFE belts on a rotary band heat sealer - FRD1000


-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

FPDBF1000ANSS

Gas Flush Continuous Band Heat Sealer





Stainless Steel Model


Fitted with "Airtac" Gas flow regulator



Machine supplied in stainless steel.


Specification:

Model - Stainless Steel

FPDBF1000ANSS

Voltage

220V/50~60Hz

Function

Gas Flushing, Bag Sealing, Coding Option

Power

Motor power(50W)

Total=1405W

Fan(15W)

Sealing Power: 220Wx2


Sealing speed(m/min)

0~12

Sealing Width(mm)

6~12

Temperature range

0~300

Max. thickness of single layer film (mm)

≤0.08

Max Loading of conveyor(Kg)

≤3

Machine size(L*W*H) mm

1020*480*(925+140 adjustable)

Weight (Kg)

28Kg



Sample filled and sealed bag with nitrogen gas

£748.00 + Vat

Back order only.

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

FPS1080VGP

Continuous Band Heat Sealer

Vacuum, Gas Flushing, Printing,


For sealing, coding, vacuum and filling with nitrogen or other gases.







The top of the machine can be adjusted to tilt forward at four different angles.


Stainless steel model.


Specification:

Model - Stainless Steel

FPS1080VGP

Voltage

220V/50~60Hz

Function

Air Suction, Gas Flushing, Bag Sealing, Coding

Power

Motor power(50W)

Total=1405W

Fan(15W)

Sealing Power: 220Wx2

Vacuum pump:900W

Sealing speed(m/min)

0~12

Sealing Width(mm)

6~12

Temperature range

0~300

Max. thickness of single layer film (mm)

≤0.08

Max Loading of conveyor(Kg)

≤3

Machine size(L*W*H) mm

1020*480*(925+140 adjustable)

Weight (Kg)

84Kg


FPS1080VGP Control Panel.


Bagged product before vacuum, placed over vacuum nozzle.


Press the foot pedal to operate the vacuum pump.


Bagged product under vacuum, then move over into sealing pick up drive.


Pressure adjustable regulator for air vacuum / filling
















Gas filling holding tank


“AirTac” filter can prevent the products

(such as small granule ,liquid)

getting into the vacuum pump
















Watch our FPS1080GVPSS Video

£1450.00 + Vat

Back order only.

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

FRM-112oLD

CBS1010CiS

Continuous Band Sealer

Solid-Ink Coding Rotary Band Sealer


Bag Sealer, Industrial Bag Sealer.

Digital Control

All-in-one continuous high-speed bag sealing system.

Stainless Steel construction.
Makes strong, professional-looking airtight seals.
Seals thermoplastic materials including Polyethylene (PE), Polypropylene (PP), BoPET (ie. Mylar), and heat-sealable laminations and cellulose (ie. Cellophane).
Capable of speeds of up to 8 mtr/min, depending on product/bag seal characteristics.
Seals bags that are standing (vertical orientation).
Includes 8.5 inch (215 mm) wide motorized belt conveyor with synchronized speed adjustment.






Extremely easy to use and maintain.


For maximum bag height size 30" (762mm)

15mm Wide seal

Fitted with a hot ink coder



FRM-1120LD Control Panel





















Machine Characteristics:
 Non-stick woven PTFE-type guide belts.
Extra wide (15mm) seal.
Maximum bag height above seal area: 40 mm.
Minimum bag height when full: 60 mm
Maximum bag height when full: 770 mm
Maximum recommended bag weight: (9 Kg.)
Equipped with electronic adjustable speed control.
Equipped with Solid-Ink / Hot-Roll printing coder for printing numbers and letters onto the bag.
Equipped with photo sensor for optimal printing precision.
Equipped with bag entry guide for easy bag feeding and straight seals.
Extended forced-air cooling system with extra-wide cooling bars and 6 heat transfer orifices.
Five-point gap adjustment for optimal bag flow.
Knurled pressure rollers with variable pressure adjustment.
Equipped with Digital temperature controller: 0 - 300°C (572°F)
Sealing method: Constant heat.
One pair of bronze sealing bars.
Minimum bag height from conveyor surface to middle of PTFE seal band: 52 mm.
Maximum bag height from conveyor surface to middle of PTFE seal band: 722 mm.
Control panel includes E-Stop (industrial quick-stop switch).

Rust-inhibiting stainless steel construction.
Includes stainless steel pedestal with casters.
Lines of print: 2
Characters per line: 20

Type Size: 5mm x 3mm

Watch our CBS1010CiS / FRM-1120LD Rotary Band Heat Sealer / Coder Video.



Standard set supplied with a new machine.


Charactors may be purchased as sets or single number / letters.

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Rotary band sealer hot ink coder


Sample print from CBS 1010CiS


Can print up to two lines of code.


Max characters per line: 20


Type Size: Letters - 5mm high x 3mm wide


15mm wide seal

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Use hot ink rolls RBHI16


If you do not need to code the pack just turn off the printer, and the bags will seal without being coded.

We only supply this machine with the printer unit attached.


Please select Carriage charge £155.00 in delivery option on check out.


FRM-1120LD - £2900.00 + Vat

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


RBHI16

Hot Ink Rolls - BLACK

Rotary Band Heat Sealers

CBS730iDS1 / FRD-1000 and CBS1010CiS / FRM1120ld Models


10 Rolls per pack
Diameter =  36.12mm
Width = 16mm

Hot Roll - Approx. 90000 prints
(Prints may vary depending on the temperature and width of the print)


£80.00 + Vat - Pack of 10 rolls

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

RBHI16W - WHITE

Hot Ink Rolls

Rotary Band Heat Sealers

CBS730iDS1 / FRD-1000 and CBS1010CiS / FRM1120 Models


10 White Hot Inked Rolls per pack


For printing onto Black pouches


Diameter =  36.12mm
Width = 16mm

Hot Roll - Approx. 90000 prints
(Prints may vary depending on the temperature and width of the print)



Coding on black pouches made easy using a white hot ink roll.





















£80.00 + Vat - Pack of 10 rolls

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

All spares may be viewed in our spares section.

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
