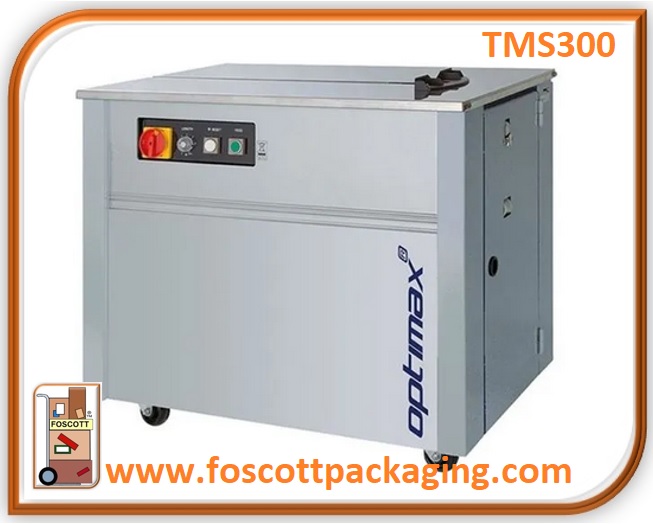

TMS300

Optimax® Semi Auto Strapping Machine


The TMS300 is a reliable semi automatic strapping machine. Simple to operate - feed the strapping around the package and the machine automatically tensions and heat seals the strap. Accepts polyprop machine strapping from 6mm - 16mm wide on 200mm or 280mm cores. Designed to provide a quick and efficient method of strapping single or multiple packages of varying sizes. The machine features external tension control, a safety cut-out switch when the top is opened and an enclosed cabinet design keeps that strapping clean and dust free.


Specifications


Fixed/swivel castors
External manual strap tension adjustment
Reliable control head
Fully enclosed cabinet
Simple to use and reliable
Highly mobile and versatile
Strapping coil and sealing head protected from damage and contamination
Uses 12mm polypropylene strap and can be adjusted for 9mm strap
Compatible with 200mm or 280mm internal diameter cores
Maximum strappable package weight 120kg
Strap tension range 15-45kg (depends on strap used)
Cycle time 2.5 seconds @ 50Hz
Power supply 230V 50Hz
Power consumption 0.3kW
Dimensions (W x D x H) 920 x 595 x 785mm
Weight 104kg

£617.00 + Vat

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

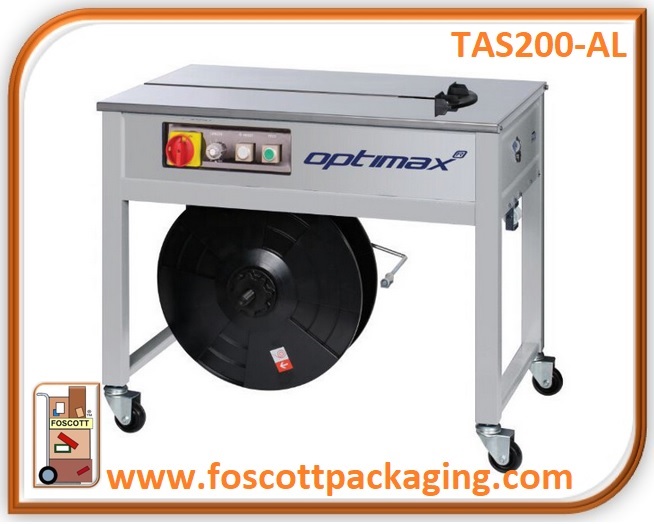

TAS200-AL

Optimax® Semi Automatic Table Strapping Machine


The TAS200-AL is a reliable semi automatic strapping machine. Simple to operate - feed the strapping around the package and the machine automatically tensions and heat seals the strap. Accepts polyprop machine strapping from 6mm - 15.5mm wide on 200mm or 280mm cores. Designed to provide a quick and efficient method of strapping single or multiple packages of varying sizes. The machine features external tension control, a safety cut-out switch when the top is opened.


Adjustable table height for more ergonomic use 730-930mm

Braking swivel castors
External manual strap tension adjustment
Reliable control head
Simple to use and reliable
Highly mobile and versatile
Easily accessible externally mounted strap coil holder

£617.00 + Vat

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

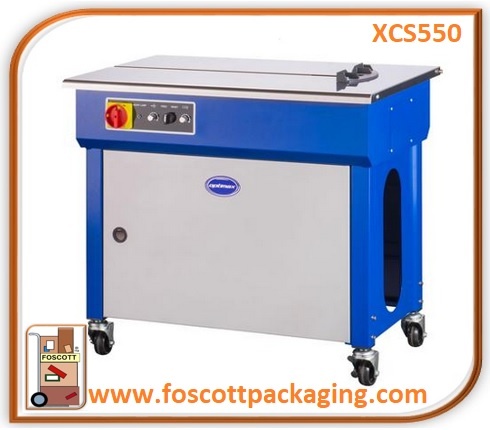

XCS550

Optimax® Semi Automatic Table Strapping Machine


780-950mm adjustable table height
Lockable swivel castors
External manual strap tension adjustment
Reliable control head
Sensor controlled heater blade
Direct drive mechanism
Semi enclosed cabinet
Simple to use and reliable
Highly mobile and versatile
Adjustable table height for more ergonomic use
Strapping coil and sealing head protected from damage
Uses 12mm polypropylene strap and can be adjusted for 9mm strap
Compatible with 200mm or 280mm internal diameter cores
Maximum strappable package weight 120kg
Strap tension range 15-45kg (depends on strap used)
Cycle time 2.5 seconds @ 50Hz
Power supply 230V 50Hz
Power consumption 0.3kW
Dimensions (W x D x H) 850 x 560 x 780-950mm
Weight 95kg

£1025.00 + Vat

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

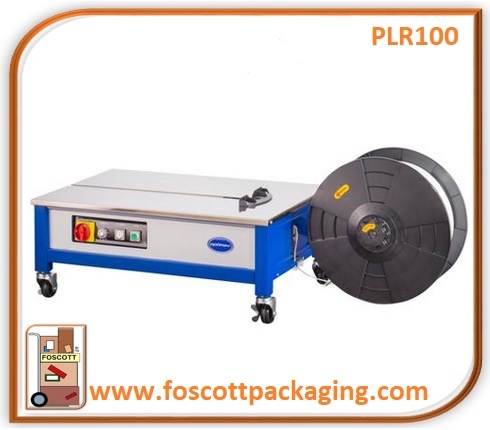

PLR100

Optimax® Semi Automatic Low Table Strapping Machine


Braking swivel castors
355mm table height
Based on the energy-efficient TMS300 platform
Simple to use and reliable
Externally mounted strapping coil
Strap width 9-16mm
Compatible with 200mm or 280mm internal diameter cores
Maximum strappable package weight 120kg
Strap tension range 15-45kg (depends on strap used)
Cycle time 2.5 seconds @ 50Hz
Power supply 230V 50Hz
Power consumption 0.25kW
Dimensions (W x D x H) 1476 x 582 x 355mm
Weight 100kg

£798.00 + Vat

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


AS400

Optimax® Stainless Semi Automatic Side Strapping Machine


The AS400 is based on the reliable TMS300 machine design, manufactured in a stainless steel cabinet with a side sealing function for applications such as marine environments, horticultural and timber packs, where water or debris from the pack would cause damage or corrosion to the mechanism of a standard semi automatic strapping machine.


Specifications


Stainless steel cabinet
Braking swivel castors
420-770mm adjustable table height
Based on the energy-efficient TMS300 platform
Simple to use and reliable
Side seal reduces risk of sealing head contamination
Adjustable table height for more ergonomic use
Externally mounted strapping coil
Strap width 6-15.5mm
Compatible with 200mm or 280mm internal diameter cores
Maximum strappable package weight 120kg
Strap tension range 15-45kg (depends on strap used)
Cycle time 2.5 seconds @ 50Hz
Power supply 230V 50Hz
Power consumption 0.3kW
Dimensions (W x D x H) 675 x 1045 x 1625mm
Weight 155kg
Strap not included

£2779.97 + Vat

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


TRS Model Range

Optimax® Automatic Arch Strapping Machines



Entry level automatic arch strapper with non-powered roller table for ease of carton handling


-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


AFS Model Range

Optimax® Automatic Arch Strapping Machines

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


HQS80-15

Optimax® 5mm Automatic Strapper with 550 x 400mm Arch


Waist height coil change

Automatic strap feed

Auto loop ejector

Adjustable table height

High level control panel

Integral front treadle bar switch

Ergonomic and user-friendly design

Strap width 5mm

Arch size (W x H) 550 x 400mm

Maximum package weight 70kg

Strap tension range 1-35kg (depends on strap used)

Maximum cycle rate 65 per minute

Power supply 230V 50Hz

Power consumption 0.5kW

Dimensions (W x D x H) 840 x 650 x 1305mm

Nett weight 157kg

Gross weight 183kg


£4635.00 + Vat

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


HQS80-15-12

Optimax® 12mm Automatic Arch Strapper



Waist height coil change

Automatic strap feed

Auto loop ejector

Adjustable table height

High level control panel

Integral front treadle bar switch

Ergonomic and user-friendly design

Strap width 12mm

Arch size (W x H) 550 x 400mm

Maximum package weight 70kg

Strap tension range 1-35kg (depends on strap used)

Maximum cycle rate 65 per minute

Power supply 230V 50Hz

Power consumption 0.5kW

Dimensions (W x D x H) 840 x 650 x 1305mm

Nett weight 157kg

Gross weight 183kg


£4944.00 + Vat

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


TRS650R-12

Optimax® 12mm Automatic Arch Strapper with Roller Driven Table


Specifications


Electronic strap tension control

Auto loop ejector, short feed sensor and auto strap feed

Roller driven table ideal for heavier consignments

Integrates with packing line or operates as stand-alone unit

Strap width 12mm

Maximum strap tension 70kg (depends on strap)

Maximum cycle speed: 29 per minute

Arch size (W x H) 850 x 600mm

Power supply 230V 50Hz

Air supply (for pre-compressor bar models) 10.0l/cycle @ 6 bar

Dimensions (W x D x H) 1580 x 706 x 1540mm

Nett weight 330kg

Strap not included


-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


TRS700B-9

Optimax® 12mm Automatic Arch Strapper with Belt Driven Table


One of the most advanced strapping machines in its class


Specifications

German brushless motor technology

Electronic strap tension control

Auto loop ejector, short feed sensor and auto strap feed

820-920mm adjustable table height

One of the most advanced strapping machines in its class

Belt drive ideal for lighter, smaller consignments

Integrates with packing line or operates as stand-alone unit

Strap width 9mm

Maximum strap tension 32kg

Maximum cycle speed: 65 per minutearch size (W x H) 650 x 500mm


Power supply 230V 50Hz

Dimensions (W x D x H) 1400 x 650 x 1497mm

Nett weight 225kg

Strap not included



-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


TPS200V

Optimax® Automatic Vertical Pallet Strapper


High-productivity pallet strapper that can be operated as a standalone or system-integrated unit


Specifications


Rapid and high productivity pallet strapping

Siemens PLC control and user-friendly touch screen

Indexing strapping head

Telescopic lance feeds strap through pallet frame, retracts for easy pallet transfer

Range of non-standard arch sizes available on request

Rapid and high productivity pallet strapping

Can be integrated within a packing line or operated as stand alone unit

Strap widths 9, 12 or 15.5mm (specify on ordering)

Internal core diameter 406mm

Standard arch size (W x H) 1400 x 2450mm

Strapping tension 1100-3000N (200-1200N available on request)

Up to 70 double-strapped pallets/hour on automated line

Power supply 415V 50Hz

Power consumption 1.35kW

Nett weight 437kg

Strap not included frst
