Vacuum Packing Machinery

Skin Packing


-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

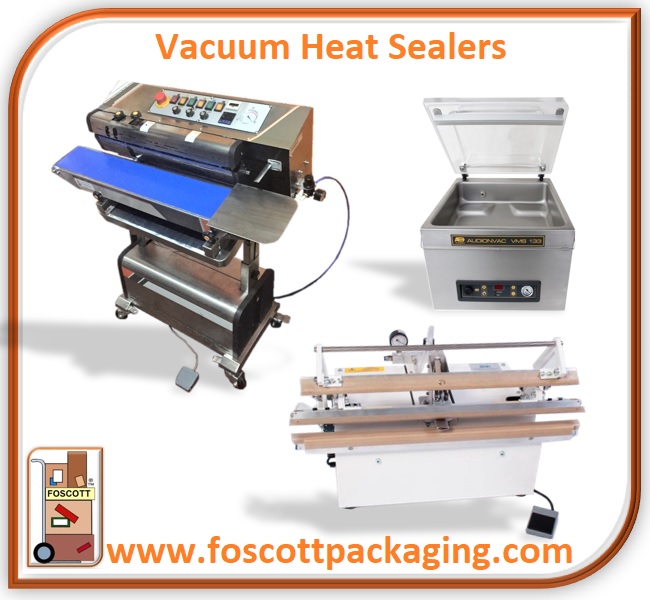

Vacuum Heat Sealers
Hand and Foot Operation.
Industrial Vacuum Sealers.

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

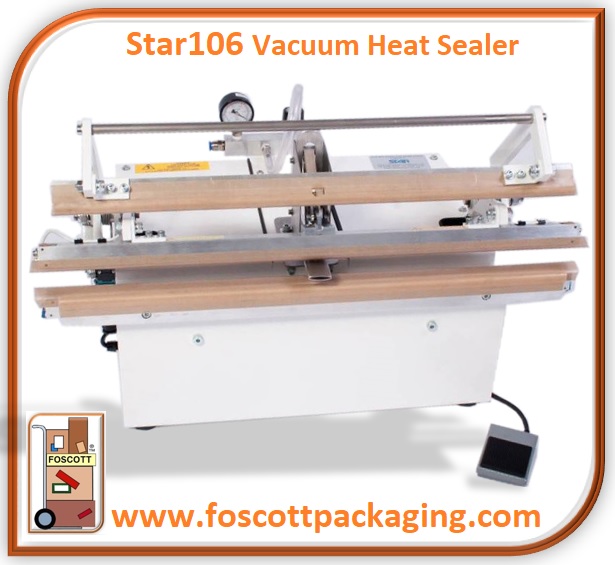

Star 106

Vacuum Heat Sealers

Hand and Foot Operation.

Industrial Vacuum Sealers.


This is a bench mounted or free standing probe type vacuum sealer.

With both jaws heated it can seal most modern barrier materials such as foils and nylon laminates up to 600mm in width.

Manual  vacuum clamp jaws.

Solenoid sealing jaw operation.

A range of vacuum pumps are available between 6 and 15m³/h.

The vacuum pump ( TL6, TL10, or TL15 ) is now fitted inside the machine.

The vacuum cycle can be manual, automatically timed or programmed to a preset level.

As the product is not placed inside a chamber there is no limit to the maximum product length.


The machine is finished in powder coated mild steel.

Stands are an option, Aluminium Profile stand on four levelling feet

Stainless Steel Stand on four levelling feet.


Four vacuum machines in the Star range

Star 106 / 500 - 500mm seal

Star 106 / 600 - 600mm seal

Star 106 / 750 - 750mm seal

Star 106 / 900 - 900mm seal



Star vacuum heat seal example


Star 106 Control panel.


The MKVI offers weld and cool control to the nearest 1/10th of a second and has a built in program to help counteract the effects of heat build up during rapid cycling.

The MKVI C has weld and cool control to the nearest degree C.

Adjustment is made by the keypad with an LCD readout of the settings.

The keys can be locked to prevent unauthorized alteration.

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Star 106/500

Vacuum Heat Sealer.

This is a bench mounted or free standing probe type vacuum sealer. With both jaws heated it can seal most modern barrier materials such as foils and nylon laminates up to 500mm in width. Manual  vacuum clamp jaws. Solenoid sealing jaw operation. A range of vacuum pumps are available between 6 and 15m³/h. The vacuum pump is now fitted inside the machine The vacuum cycle can be manual, automatically timed or programmed to a preset level. As the product is not placed inside a chamber there is no limit to the maximum product length. The machine is finished in powder coated mild steel.

Jaw Width 500mm , double heat elements , 6mm element wire.

This machine comes with a TL6 pump fitted as standard.


£2240.00 + Vat


-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Star 106/600

Vacuum Heat Sealer.

This is a bench mounted or free standing probe type vacuum sealer. With both jaws heated it can seal most modern barrier materials such as foils and nylon laminates up to 500mm in width. Manual  vacuum clamp jaws. Solenoid sealing jaw operation. A range of vacuum pumps are available between 6 and 15m³/h. The vacuum pump is now fitted inside the machine The vacuum cycle can be manual, automatically timed or programmed to a preset level. As the product is not placed inside a chamber there is no limit to the maximum product length. The machine is finished in powder coated mild steel.

Jaw Width 600mm , double heat elements , 6mm element wire.

This machine comes with a TL6 pump fitted as standard.


£2281.00 + Vat


-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Star 106/750

Vacuum Heat Sealer.

This is a bench mounted or free standing probe type vacuum sealer. With both jaws heated it can seal most modern barrier materials such as foils and nylon laminates up to 500mm in width. Manual  vacuum clamp jaws. Solenoid sealing jaw operation. A range of vacuum pumps are available between 6 and 15m³/h. The vacuum pump is now fitted inside the machine The vacuum cycle can be manual, automatically timed or programmed to a preset level. As the product is not placed inside a chamber there is no limit to the maximum product length. The machine is finished in powder coated mild steel.

Jaw Width 750mm , double heat elements , 6mm element wire.

This machine comes with a TL6 pump fitted as standard.


£2326.00 + Vat


-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Star 106/900

Vacuum Heat Sealer.

This is a bench mounted or free standing probe type vacuum sealer. With both jaws heated it can seal most modern barrier materials such as foils and nylon laminates up to 500mm in width. Manual  vacuum clamp jaws. Solenoid sealing jaw operation. A range of vacuum pumps are available between 6 and 15m³/h. The vacuum pump is now fitted inside the machine The vacuum cycle can be manual, automatically timed or programmed to a preset level. As the product is not placed inside a chamber there is no limit to the maximum product length. The machine is finished in powder coated mild steel.

Jaw Width 900mm , double heat elements , 6mm element wire.

This machine comes with a TL6 pump fitted as standard.


£2370.00 + Vat


-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


VT-HEAD

Hacona® V-TYPE Control Head

Control unit for the V-Type vacuum impulse heat sealing system


Control head only
Requires additional interchangeable 420 - 1320mm

sealing bars (sold separately)
Features pre-seal air evacuation and gas flushing for electronics and pharmaceutical industries Automatic, foot pedal or manual operation

Bi-active upper and lower sealing (both seal bars are heated)
Sensor-activated ejector vacuum pump with vacuum filter
Water discharge system
Separate incremental adjustment of primary and secondary evacuation pressures, gas flushing time and sealing/cooling times
Pneumatic sealing bar closure
5.7" colour LCD touch screen control with user-friendly multilingual menu
Compatible with any thermo-sealable laminated products including PET/paper/PE and PET/aluminum/PE
Power Supply 230V 50hZ
Maximum delivered air pressure 8 bar




£7811.00 + Vat

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Hacona® V-Type Sealing Bars


Interchangeable sealing bars for the VT-Type vacuum impulse heat sealing system


Fix to the VT-HEAD vacuum heat sealer control head


Seal width 8mm


Five sealing bars in the Hacona range

VT420 - 420mm

VT620 - 620mm

VT820 - 820mm

VT1020 - 1020mm

VT1320 - 1320mm


-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


VT420

Hacona® V-Type Sealing Bars

Interchangeable sealing bars for the VT-Type vacuum impulse heat sealing system

Fix to the VT-HEAD vacuum heat sealer control head

Seal width 8mm

Seal length 420mm

Maximum bag width 400mm

Power consumption 1800W

Dimensions including sealer

(W x D x H) 560 x 550 x 260mm

Weight including sealer 36kg


£562.00 + Vat


-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


VT620

Hacona® V-Type Sealing Bars

Interchangeable sealing bars for the VT-Type vacuum impulse heat sealing system

Fix to the VT-HEAD vacuum heat sealer control head

Seal width 8mm

Seal length 620mm

Maximum bag width 600mm

Power consumption 1800W

Dimensions including sealer

(W x D x H) 760 x 550 x 260mm

Weight including sealer 40kg


£811.00 + Vat

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


VT820

Hacona® V-Type Sealing Bars

Interchangeable sealing bars for the VT-Type vacuum impulse heat sealing system

Fix to the VT-HEAD vacuum heat sealer control head

Seal width 8mm

Seal length 820mm

Maximum bag width 800mm

Power consumption 2300W

Dimensions including sealer

(W x D x H) 960 x 550 x 260mm

Weight including sealer 44kg


£892.00 + Vat

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


VT1020

Hacona® V-Type Sealing Bars

Interchangeable sealing bars for the VT-Type vacuum impulse heat sealing system

Fix to the VT-HEAD vacuum heat sealer control head

Seal width 8mm

Seal length 1020mm

Maximum bag width 1000mm

Power consumption 2500W

Dimensions including sealer

(W x D x H) 1160 x 550 x 260mm

Weight including sealer 48kg


£1385.00 + Vat

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


VT1320

Hacona® V-Type Sealing Bars

Interchangeable sealing bars for the VT-Type vacuum impulse heat sealing system

Fix to the VT-HEAD vacuum heat sealer control head

Seal width 8mm

Seal length 1320mm

Maximum bag width 1300mm

Power consumption 2800W

Dimensions including sealer

(W x D x H) 1460 x 550 x 260mm

Weight including sealer 54kg


£1786.00 + Vat

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Hacona® Large Vacuum Sealing Machines


-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Vacuum Chamber Machines

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


VMS133

Audion Vacuum Chamber Machine


Machine size ( L x W x H )    490mm x 525mm x 430mm


Seal Bar length  410mm


Absolute chamber size   420mm x 420mm x 180mm


Effective chamber size   410mm x 370mm


Seal width  3.5mm double seal


230v - 50Hz


Pump Capacity  16m/h



£1975.00 + Vat

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


VMS153

Audion Vacuum Chamber Machine



Machine size ( L x W x H )    490mm x 525mm x 445mm


Seal Bar length  (option)   1 x 410mm / 2 x 410mm


Absolute chamber size     420mm x 420mm x 180mm


Effective chamber size    410mm x 370mm


Seal width    3.5mm double seal


230v - 50Hz


Pump Capacity  21m/h



£2175.00 + Vat

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Vacuum Bags can be viewed on our Packaging Films page.

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


SP3

Skin Pack Machine


EDL John Quinn SP3 range of skin packaging machines are designed to meet a wide range of requirements from small batch production to high volumes.

With modern technology we have re-developed the SP range with a pneumatic vacuum valve which replaces the vacuum pump.

The SP machine now has a built-in timer to cut heat power down to half if machine isn't used for a period.


Standard Features

Ceramic Heating Elements (Zone Controlled)

Ceramic Heating Elements (Zone Controlled)

High Efficiency Vacuum Valve

Eco Timer

Controls Both Manual and Auto Running

Pre-Load and Off-Load Tables Either Side (Optional)


Typical Applications

The SP range of skin packers have been used successfully in a wide range of industries including DIY tools, Automotive tools, Household goods, Door handles, Stationary items and Spares


SP3 - Card size - 765mm x 511mm
SP3 Large - Card size - 800mm x 600mm
Electrics - 3 Phase


SP3 New Style Skin Pack Model



-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
